Electrosurgery & ECG

ZERONE

ZERONE Co., Ltd. is a Korean medical device manufacturer specialised in surgery and treatment, designed and made in Korea. The portfolio splits into two lines: the ZEUS series of electrosurgical units, from compact 50 W devices to a 400 W platform with vessel sealing and TURP, and the CARDIUS 12-lead electrocardiographs with touch screen and optional spirometry.

Request a quote Manufacturer website

Electrosurgery

400 W electrosurgical unit

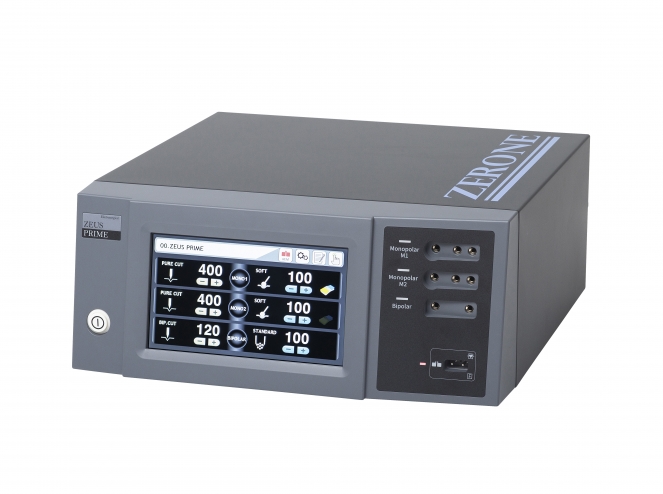

ZEUS PRIME

ZEUS PRIME is ZERONE's flagship electrosurgical platform, built on Technology of Tissue Impedance, which delivers the same result at lower power. It seals blood vessels with the Vi-Sealer instrument and stops the current automatically as soon as the seal is complete, performs TURP cutting and coagulation under saline solution, and offers an Endo Cut mode for polypectomy. The 8-inch touch screen, 99 configuration memories and return electrode monitoring make it fast and safe in the operating room.

Monopolar cut: Pure Cut 400 W / 500 Ω; Blend 1-3 from 250 W down to 150 W
Coagulation: Contact 120 W, Spray 100 W, Soft 100 W, Argon 100 W
Bipolar: Cut 120 W, Blend 100 W, Standard and Auto Start 100 W, Forced 80 W
Special functions: TURP levels 1-9, vessel sealing levels 1-5, Endo Cut, polypectomy
Display: 8-inch colour touch screen, 99 memories
Safety: Return Electrode Monitoring (REM), self test before boot
Power: 100-240 V, 50/60 Hz, 800 VA; frequency 333-727 kHz
Dimensions / weight: 390 × 395 × 160 mm, 11 kg
Classification: Class I, Type CF; MDD 93/42/EEC class IIb

Request a quote Manufacturer page

400 W electrosurgical unit

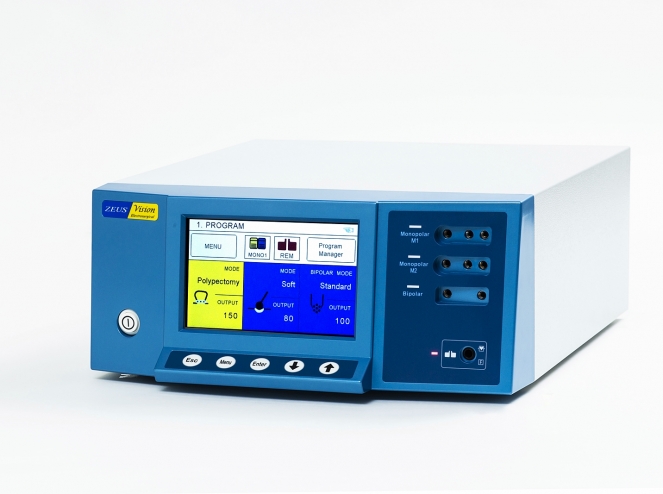

ZEUS VISION

ZEUS VISION is a 400 W electrosurgical unit for major surgery, with monopolar and bipolar functions. Like the rest of the ZEUS series it has return electrode monitoring that cuts the current when patient contact is insufficient, and audible and visual indication for every working mode.

Power: 400 W
Modes: Pure cut and blend, contact and spray coagulation, bipolar
Safety: Return Electrode Monitoring (REM)
Signalling: Different tones per mode, adjustable level
Use: Major surgery, operating room

Request a quote Manufacturer page

Electrosurgical units for major surgery

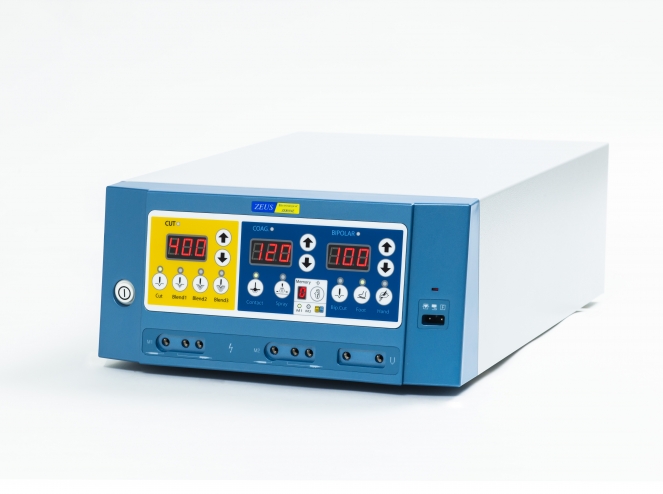

ZEUS-400 / 300 / 200

The ZEUS-400, ZEUS-300 and ZEUS-200 series covers major surgery with three power levels, chosen according to the workload of the theatre. All three share the same feedback control system, return electrode monitoring and the auto select function that brings power to the working level with one touch.

Models: ZEUS-400 (400 W), ZEUS-300 (300 W), ZEUS-200 (200 W)
Modes: Pure Cut, Blend, contact and spray coagulation, bipolar coagulation
Safety: REM, fuse protection, fully grounded case
Control: Twin button handle or double foot switch
Use: Major surgery

Request a quote Manufacturer page

200 W and 150 W electrosurgical units

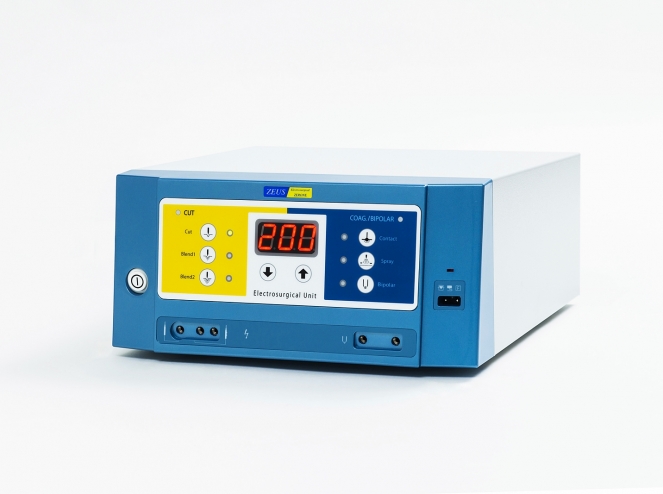

ZEUS-200S / ZEUS-150

ZEUS-200S and ZEUS-150 are mid-range units, sufficient for most procedures in specialist practices and day clinics. They keep the main cutting and coagulation modes in a compact housing, with return electrode monitoring and clear signalling during work.

Models: ZEUS-200S (200 W), ZEUS-150 (150 W)
Modes: Pure Cut, Blend, contact and spray coagulation, bipolar
Safety: REM, alarm when the plate is disconnected from the patient
Design: Compact, for practices and day clinics

Request a quote Manufacturer page

100 W and 80 W RF electrosurgical units

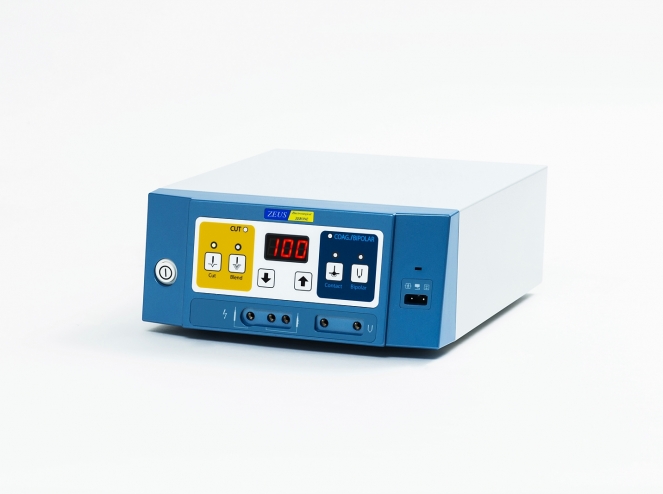

ZEUS-100 / ZEUS-80

ZEUS-100 and ZEUS-80 are radiofrequency units for small and medium procedures, suited to dermatology, ENT, gynaecology and outpatient work. They provide cutting and coagulation in a small footprint, with simple control and the standard protections of the series.

Models: ZEUS-100 (100 W), ZEUS-80 (80 W)
Technology: Radiofrequency
Modes: Monopolar cutting and coagulation, bipolar coagulation
Use: Dermatology, ENT, gynaecology, outpatient work

Request a quote Manufacturer page

50 W RF electrosurgical unit

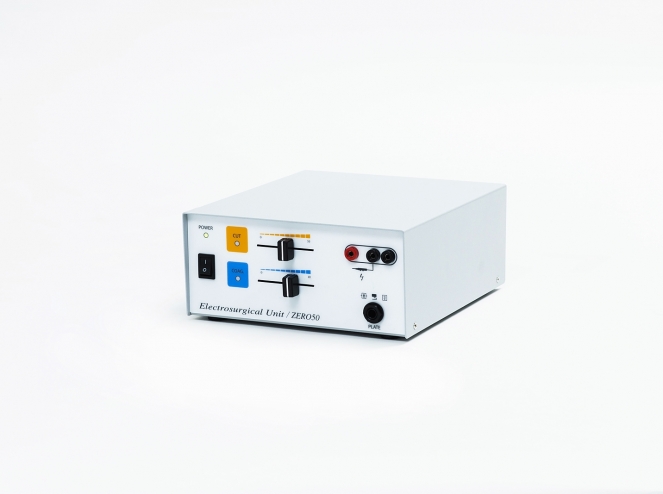

ZERO50

ZERO50 is ZERONE's most compact unit, a 50 W radiofrequency device for monopolar work. It suits practices that need small, quick procedures, with direct controls on the front panel and a patient plate connection.

Power: 50 W, radiofrequency
Operation: Monopolar, cutting and coagulation
Control: Direct adjustment from the front panel
Use: Small procedures in the practice

Request a quote Manufacturer page

ECG and spirometry

12-channel electrocardiograph with spirometry

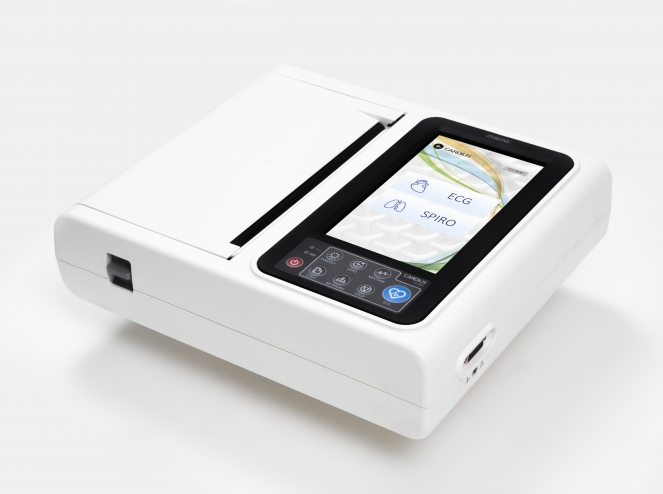

CARDIUS CZ-800

CZ-800 is the flagship of the CARDIUS series: 12 leads acquired simultaneously, an 8-inch touch screen and two printing modes, roll or Z-fold paper. It stores 500 examinations in internal memory and connects to PACS through the worklist. With the spirometry module it also performs pulmonary function testing, including pre and post bronchodilator comparison.

Leads: 12 leads, 12 channels simultaneously
Display: 8-inch colour TFT, 800 × 480, touch screen
Printing: Roll and Z-fold paper; 5, 12.5, 25, 50, 100 mm/s
Spirometry: FVC, SVC, MVV, COPD6; pre and post bronchodilator comparison
Memory: 500 ECGs on the device, USB expansion
Connectivity: USB and PACS; PDF, JPG, BMP, XML, MFER, DICOM
Battery: Lithium-ion, up to 4 hours, about 200 printouts
Dimensions / weight: 353 × 302 × 92 mm, approx. 3.7 kg
Safety: Class I, Type CF; defibrillation protected

Request a quote Manufacturer page

12-channel electrocardiograph

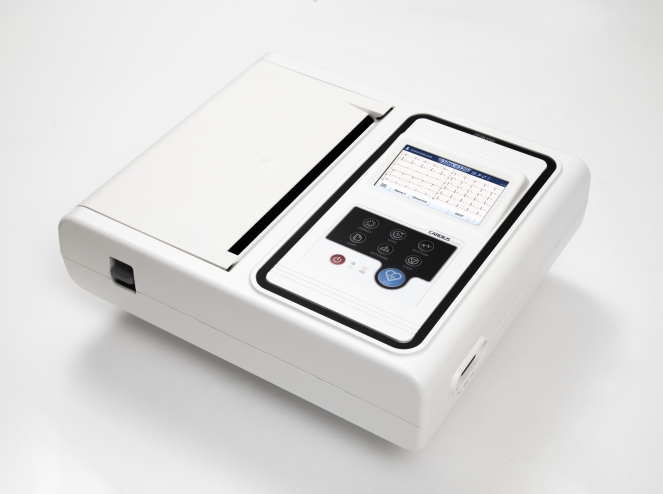

CARDIUS CZ-430

CZ-430 keeps the same measurement performance as the larger model, with a 4.3-inch touch screen and the same compact body. It records 12 leads simultaneously, prints on roll or Z-fold paper, stores 500 examinations and runs on a lithium-ion battery, which suits field visits and practices with limited space.

Leads: 12 leads, 12 channels simultaneously
Display: 4.3-inch colour TFT, 480 × 272, touch screen
Printing: Roll and Z-fold paper; 5, 12.5, 25, 50, 100 mm/s
Memory: 500 ECGs on the device, USB expansion
Battery: Lithium-ion, up to 4 hours
Dimensions / weight: 353 × 302 × 102 mm, approx. 3.7 kg
Safety: Class I, Type CF; defibrillation protected

Request a quote Manufacturer page

12-lead electrocardiograph

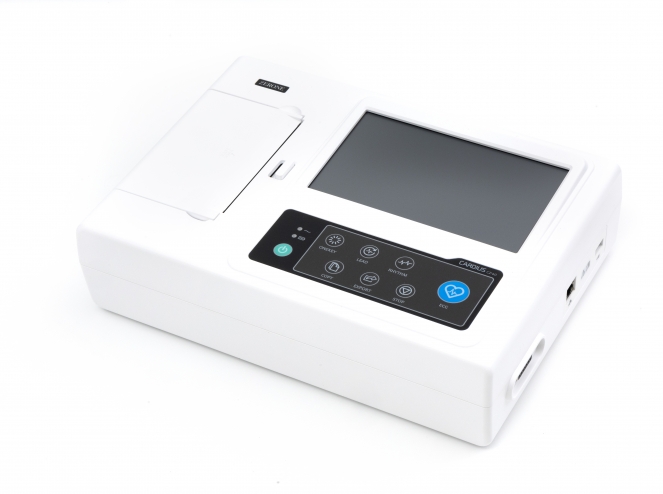

CARDIUS CZ-60

CZ-60 is a CARDIUS series model for routine work in the practice. It records the standard 12 leads with a ten-electrode set and accepts patient cables in IEC or AHA colour coding, according to the institution's practice. The full technical sheet is provided on request.

Leads: Standard 12 leads, 10-electrode set
Cables: IEC or AHA colour coding, on request
Series: CARDIUS, ZERONE
Documentation: Full technical sheet on request

Request a quote Manufacturer page

12-lead electrocardiograph

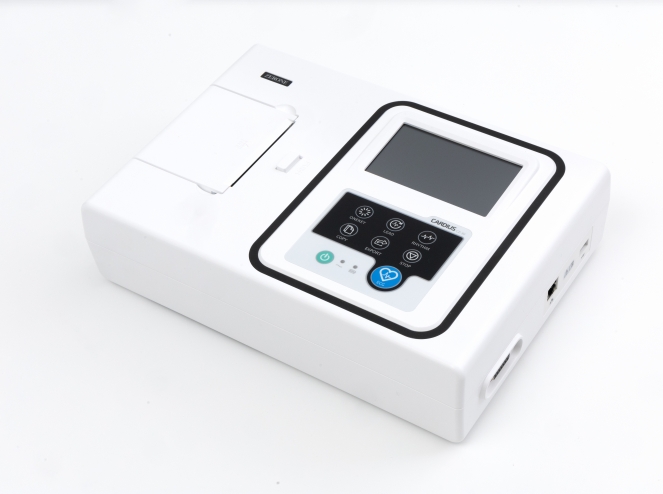

CARDIUS CZ-30

CZ-30 is the entry model of the CARDIUS series, intended for practices that need a simple, reliable electrocardiograph. It records the standard 12 leads and uses the same cables and electrodes as the other models in the series. The full technical sheet is provided on request.

Leads: Standard 12 leads, 10-electrode set
Cables: IEC or AHA colour coding, on request
Series: CARDIUS, ZERONE
Documentation: Full technical sheet on request

Request a quote Manufacturer page
